40 Years of Quality & Innovation

All BDS units are manufactured under licence

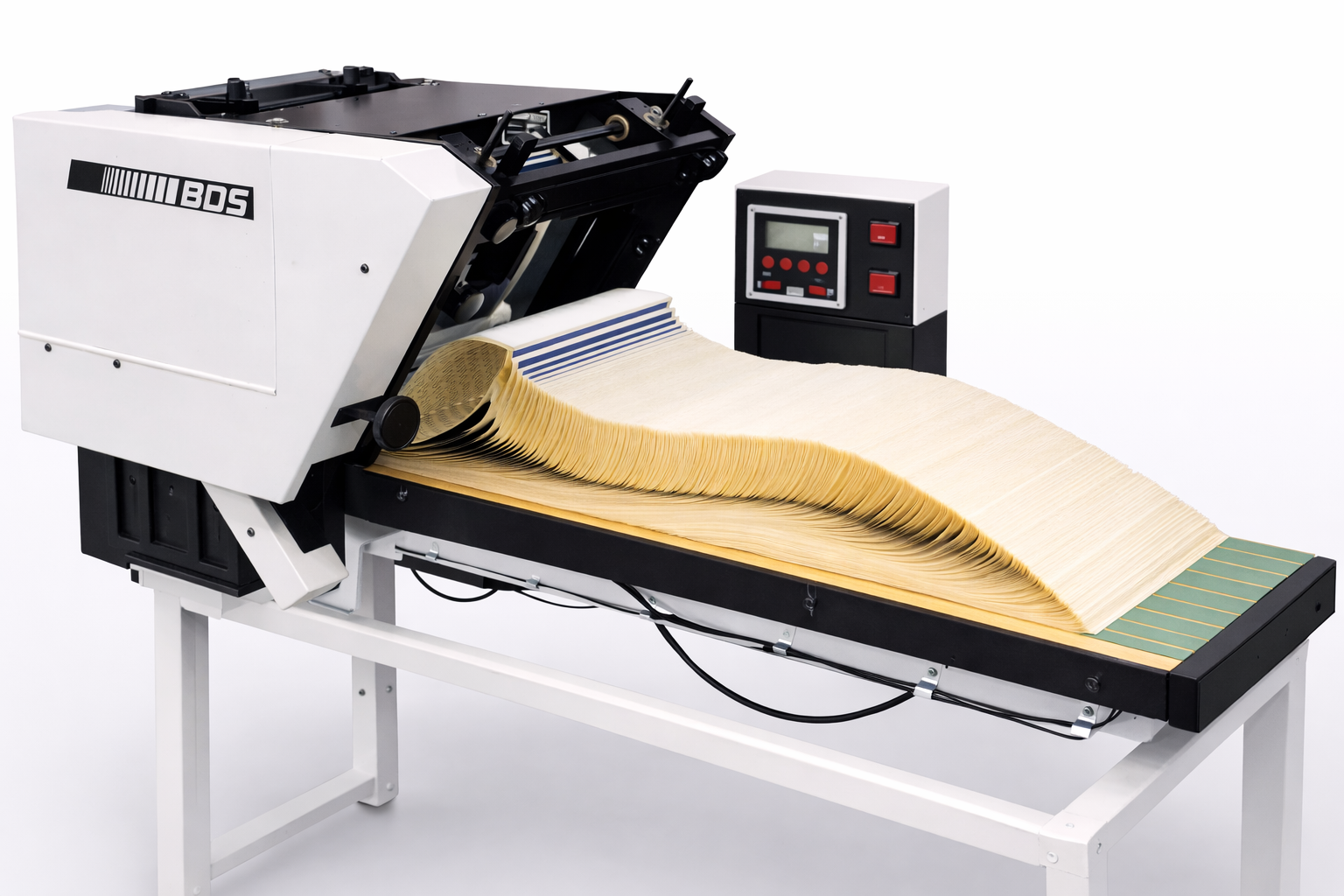

Fan folder for labels forms and tickets.png

B-100 Single Stream Folder

Delivers stack on continuously moving conveyor. Label or form products.

  • Fold lengths 5.00" - 13.00" (Imperial)
  • Fold lengths 127mm - 330.2mm (Metric)
  • Single Stream
  • In-line or Off-line
  • 600 + Folds / min
  • Web widths 6.50" to 18.00" (Imperial)
  • Web widths 165mm to 460mm (Metric)
Twin stream fan folder for labels forms and tickets.png

B-200 Twin Stream Folder

Delivers stack on continuously moving conveyor. Label form or ticket products.

  • Fold lengths 5.00" - 15.00" (Imperial)
  • Fold lengths 127mm - 381mm (Metric)
  • Twin Stream - No ties required
  • In-line or Off-line
  • 500 + Folds / min
  • Web widths 10.00" - 13.00" - 18.00" - 20.00" (Imperial)
  • Web widths 254mm - 330mm - 460mm - 510mm (Metric)
Swing head fan folder short fold product forms label wrist bands.png

B-700-SH Twin Stream Folder

Swing head allows operator to change angle of stack delivery onto the conveyor. Wristband and short fold products.

  • Fold lengths 5.00" - 15.00" - Optional for kit 3.75" (Imperial)
  • Fold lengths 127mm - 381mm - Optional for kit 95.25mm (Metric)
  • Twin Stream - No ties required
  • In-line or Off-line
  • 500 + Folds / min
  • Web widths 10.00" - 13.00" - 18.00" - 20.00" (Imperial)
  • Web widths 254mm - 330mm - 460mm - 510mm (Metric)
Fan folder vertical stacking labels tickets and wrist bands.png

B-200 AS Twin Stream / Auto Stacking Folder

Designed for running of numbered product requiring separation at exact count in short packs. Wristband or short fold label and ticket products.

  • Fold lengths 5.00" - 12.00" - Option kit for 3.50"- fold (Imperial)
  • Fold lengths 127mm - 304.8mm - Option kit for 88.9mm - fold (Metric)
  • Twin Stream - No ties required
  • In-line or Off-line
  • 500 + Folds / min
  • Web widths 10.00" - 13.00" - 18.00" - 20.00" (Imperial)
  • Web widths 254mm - 330mm - 460mm - 510mm (Metric)

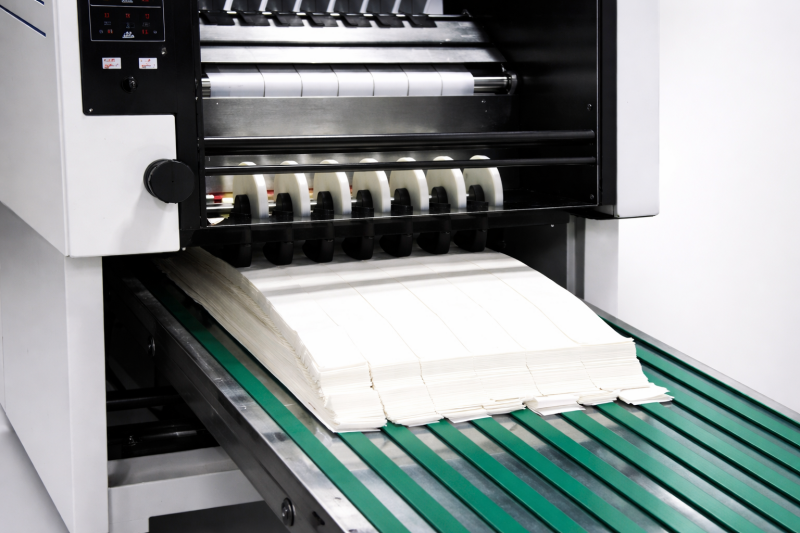

Stream delivery fan folder long fold off-line airline baggage tags and tickets.png

M-300 / 400 Multi Stream Fan Folder

Delivers Stacks delivered in Multiple Streams on continuously moving conveyor. Label ticket and form products, Airline baggage tags.

  • Fold lengths M-300 5.00" - 24.00" & M-400 5.00" - 18.00" (Imperial)
  • Fold lengths M-300 127mm - 609.6mm & M-400 127mm - 457.2mm (Metric)
  • Multiple Streams - Shear slit, no ties required
  • In-line or Off-line
  • 500 + Folds / min
  • Web widths 13.00" - 18.00" - 22.00" (Imperial)
  • Web widths 330mm - 460mm - 560mm (Metric)
Multi stream fan folder long fold off-line airline baggage tags and tickets.png

M-300-AS / M-400- AS Multi Stream Auto Stacking Fan Folder

Delivers multi-Stream, slit product directly into accurately counted stacks. Completed stacks are transported out of the unit on a delivery conveyor and manually separated. An optional tray loading system is available where completed sets of stacked products can be removed for boxing or packaging process. Suitable for Label, Ticket, Form and Airline baggage tags products.

  • Fold lengths M-300 5.00" - 24.00" & M-400 5.00" - 18.00" (Imperial)
  • Fold lengths M-300 127mm - 609.6mm & M-400 127mm - 457.2mm (Metric)
  • Multiple Streams - Shear slit, no ties required.
  • In-line or Off-line
  • 500 + Folds / min
  • Web widths 13.00" - 18.00" - 22.00" (Imperial)
  • Web widths 330mm - 460mm - 560mm (Metric)
  • Crush Slitting (optional)
  • Tray loading system (optional)

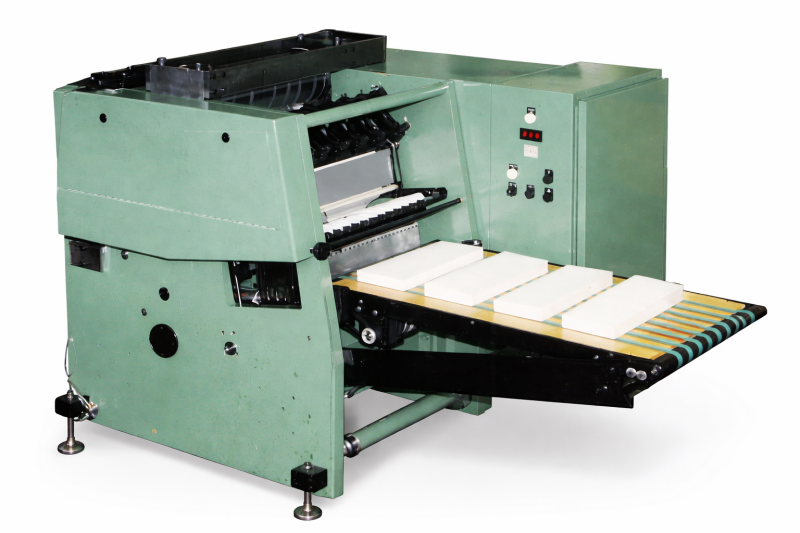

Auto cut off fan folder for multi stream folding of short pack products.png

AP-I Multi Stream - Auto Cut-Off Fan Folder

Delivers multi-Stream, slit product directly into accurately counted stacks. Packs are automatically and accurately Cut-Off at end of stack count. Completed stacks are transported out of the unit on a delivery conveyor.

An optional tray loading system is available where completed sets of stacked products can be removed for boxing or packaging process. Suitable for Label, Ticket, Form and Airline baggage tags products.

  • Fold lengths 5.00" - 8.00" & 5.00" - 12.00" (Imperial)
  • Fold lengths 127mm - 203.2mm & 127mm - 304.8mm (Metric)
  • Multiple Streams - Crush or Shear slit, no ties required
  • In-Line or Off-Line
  • 500 + Folds / min
  • Web widths 13.00" - 18.00" - 22.00" (Imperial)
  • Web widths 330mm - 460mm - 560mm (Metric)
  • Twin Slitting assembly - quick change over (optional)
  • Custom designed Tray loading or Packaging Systems (optional)
